Smart Fan - Node Red

[brandon_bern]

I'm working on getting my smart fan functional for my raspberry pi and I'm getting an error when attempting to send a number value to the fan to set the power.



[alexburcea]

Hi,

Have you enabled the I2C port?
Did the FAN work with his command line interface?

Alex.



[brandon_bern]

Alex, thank you for the response.

I had followed the instructions provided on the website and on github to enable I2C. From the cli the fan does respond. Using the following commands I can set the fan power to 15. Initially I was trying to use the python sample loop program but I ran into issues using pip3 to install the python SMsfan packages.

~ $ cd SmartFan-rpi/
~/SmartFan-rpi $ fan -h
~/SmartFan-rpi $ fan 0 pwr 15
~/SmartFan-rpi $ fan 0 prd
15

This is definitely something new for me. With little experience, any assistance is greatly appreciated.



[alexburcea]

The Python install problem can be overcome if you install the library manually:
- Go to the python folder "cd SmartFan-rpi/python"
- Run the manual install "sudo python setup.py install"

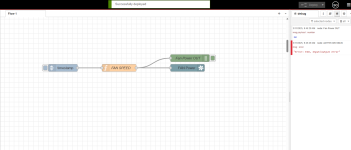

The NodeRed one is generated by the fact that the node is a little outdated, but I encourage you to use the exec node and run the fan command in it. It is straightforward to use, let me know if you get in trouble.

Alex.



[brandon_bern]

I was able to follow your instructions to install the python libraries manually and that did the trick.

now the following commands run the example loop program.
cd ~/SmartFan-rpi/python/examples/
~/SmartFan-rpi/python/examples $ python loop.py -t 50 -v

Thank you!!
